Genie Z-45/25

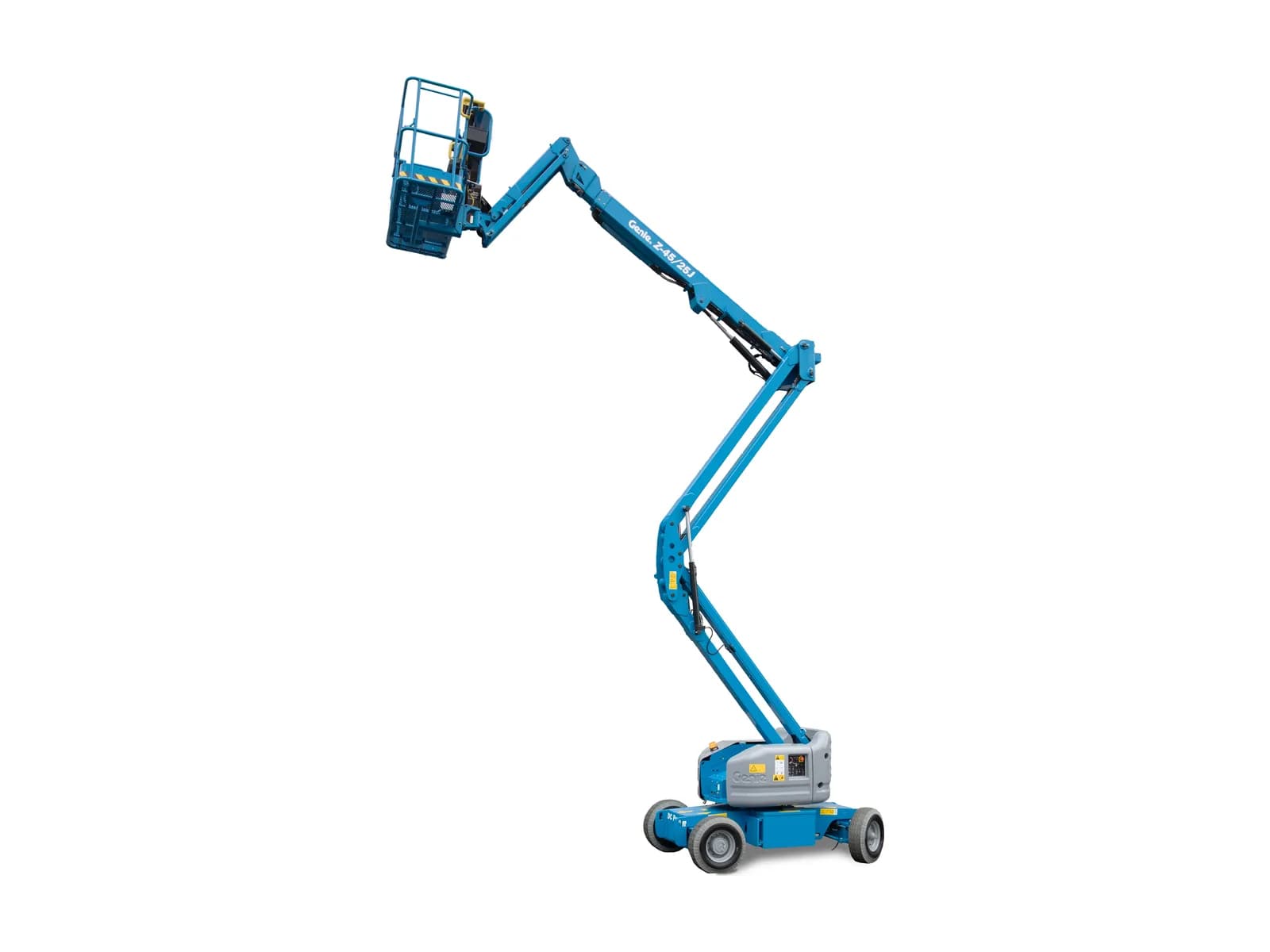

Genie Z-45/25 15.87m hybrid articulated boom lift

A jointed boom that climbs up and over obstacles to put the cage exactly where you need it.

Price and dates

Specification

Slew 355°Working height 15.87mPlatform 13.87mUp and over 7.04mOutreach 7.62mStowed length 5.56mSWL 227kg

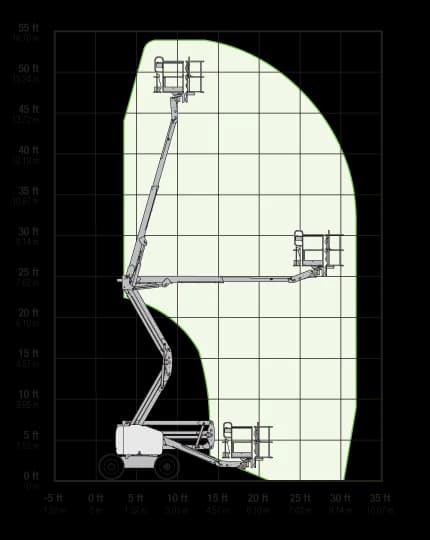

Articulated boom, side elevationDrawing not to scale

Working height
15.87m
52ft 1in
Platform height
13.87m
45ft 6in
Outreach
7.62m
25ft
Up and over
7.04m
23ft 1in
Slew
355°
Safe working load
227kg
Stowed size (L x W x H)
5.56m x 1.79m x 2m
Machine weight
7,190kg
Power
Hybrid (battery and diesel)

IPAF category 3B. Power: Hybrid (battery and diesel). Blank figures are not yet confirmed.

Where these figures come from

About this machine

An articulated boom has a knuckle part way along the arm, so you can lift over a roof edge, plant or a parked lorry and then reach down or across to the work.

The turret slews round, letting you cover a wide area from one parking spot.

Hybrid power lets you run on battery inside and switch to the engine outdoors or to top up the charge.

Good for

  • Roof edges, gutters and fascias
  • Steelwork and building envelopes
  • Tree work and signage

Price and dates

Frequently asked questions

What licence do I need to operate it?
Operators should hold an IPAF PAL card for category 3B (mobile boom platforms). We can point you to training if you need it.
How high and how far can I reach?
The published working height is 15.87m (52ft 1in), platform height 13.87m (45ft 6in), with up to 7.62m (25ft) of outreach. Its model name gives its platform height in feet, rounded, so it is hired as a 45ft boom lift. Working height assumes a person of average height standing on the platform, so leave a margin for tools and fixings.
Can I use it indoors?
Yes. Hybrid power lets you run on battery inside and switch to the engine outdoors or to top up the charge.
How big and heavy is it?
Stowed, it is 5.56m long, 1.79m wide and 2m high, and it weighs 7,190kg. Check doorways, gates, lifts and floor loading against those figures before you book.
Is delivery included?
Yes. Delivery and collection are included in the hire price. Some areas, such as Greater London and Scotland, carry an area surcharge, and the postcode check on this page shows it before you book.
What does the price include?
The main price is for a week's hire of the machine at our week rate, inc and ex VAT, with the 2-day price under it. A machine without a week rate shows its 2-day price instead. Optional damage waiver included. Hold your own HiPI? Upload your certificate to remove it. Delivery and collection are included, plus any area surcharge for your postcode, and other hire lengths are priced when you pick your dates.
